Advanced structural analysis software

Test the effects of structural loads and verify code compliance using advanced BIM (Building Information Modelling) tools. Robot Structural Analysis Professional is available only in the Architecture, Engineering & Construction Collection.

Robot Structural Analysis Professional features

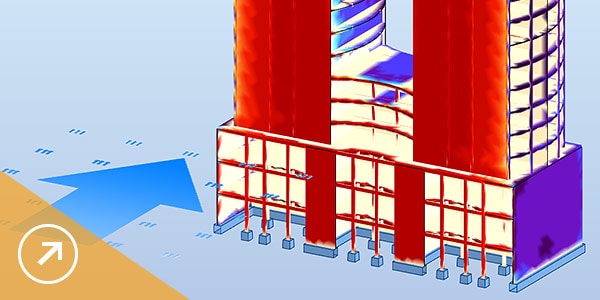

  • Wind load simulation

    Test wind loads in structural design before structural system changes become costly. (video: 1.31 mins)

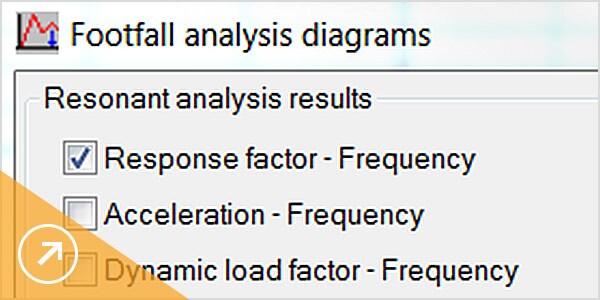

  • Wide range of analysis capabilities

    Test the behaviour of static, modal and non-linear structures.

  • BIM-integrated workflows

    Exchange data with Revit and other design tools.

  • Reporting analysis results support

    Select from a variety of ways to present your structural analysis results.
    (video: 4.25 mins)

Try Robot Structural Analysis Professional free for 30 days

Tips for a successful download

Use at least a 10 Mbps Internet connection.

Before you begin, temporarily turn off all active applications, including virus-checking software.

Make sure you have sufficient space on your hard drive. Trials typically have large file sizes. See the disk space recommendation in system requirements.

Restart your computer after installation.

  • System requirements
  • Help downloading and installing a trial

    Find answers to common questions

    Get help from real people

    • Chat

Robot Structural Analysis Professional is available only in a collection

Get Robot Structural Analysis Professional together with Revit + AutoCAD + Civil 3D + more.
