Moldflow Insight features

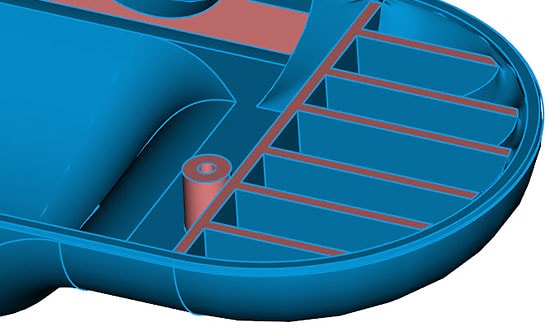

  • Part and process optimisation

    Use automated design of experiments, including model geometry parameter, to determine the best process and design. (video: 1.37 min.)

  • 3D resin transfer moulding (RTM)

    Predict resin-filling pattern for RTM/SRIM to identify areas resin can not impregnate fibre mat and enable product quality review. (video: 1.50 min.)

  • Cloud solving

    Run multiple analyses or DOES in the cloud and quickly solve larger analyses without compromising local resources.
    (video: 1.51 min.)

  • Direct geometry editing

    Edit properties like wall thickness or feature positions by editing CAD model directly within Moldflow. (video: 1.42 min.)

What's new

  • Coolant flow analysis

    Simulate coolant flow from pump, through hoses and into the mould channels.

  • Shared views collaboration tool

    Share lightweight versions of results in the cloud through any cloud-connected device.

  • Fusion 360 CAD simplification

    Direct interoperability with Fusion 360 for CAD simplification and fix solutions.

  • Sink marks for overmoulding

    Evaluate sink marks on both substraight and overmould components within the overmoulding analysis.

Which Moldflow is right for you?

  • Moldflow Insight

    A complete set of advanced plastics engineering simulation tools for analysts. Simulate the most advanced moulding processes to avoid production delays.
    (video: 1.57 min.)

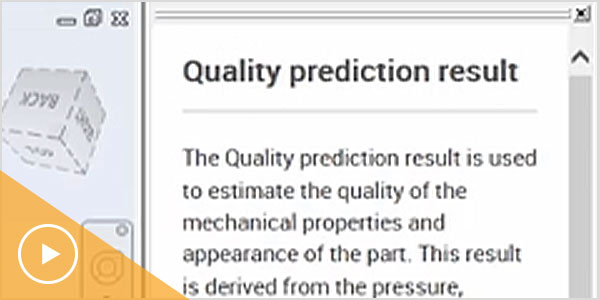

  • Moldflow Adviser

    Plastic simulation tools for engineers and analysts. Optimise part and mould designs to ensure moulded part quality and manufacturability. (video: 3.09 min.)

See how people are using Moldflow

Video: Schneider Electric's success using Moldflow

Schneider Electric

Reduced project development time

Implementing Moldflow Insight and Moldflow Adviser for upfront simulation, Schneider Electric brought time to market down 50%.

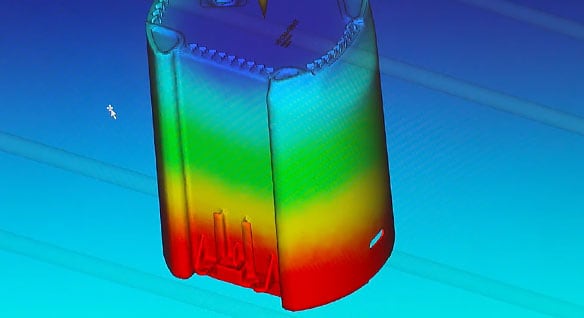

Video: 3-Dimensional Services uses Moldflow and PowerShape

3-Dimensional Services Group

Rapid manufacturing of high-quality parts

Working with Moldflow to simulate designs created and modified with PowerShape, the group validates part and tool designs to generate high-quality parts.

Video: FADO uses Moldflow for cycle-time reduction

FADO

Complete moulding solutions

FADO uses Moldflow to simulate optimal conformal cooling designs, ensure part quality and reduce mould cycle times for high-volume production.

See how Moldflow Insight works with Helius PFA

Moldflow Insight + Helius PFA (video 1.33 min.)

Map residual stresses and strains to structural analysis and preduct as-manufactured structural properties. Map fibre orientations and material data from Moldflow and Helius PFA can use the information for a more accurate simulation of the materials.
